Interactive storage configuration

This section describes some general aspects of Agama regarding storage setup and shows how the web interface can be used to configure the related settings.

The general approach

Agama uses the same algorithm and similar configurations for both interactive and unattended installations, combining capabilities of the traditional YaST proposal (usually known as Guided Setup) and the AutoYaST profile. Those configurations can be specified using the web interface or through a JSON-based configuration profile.

Agama can work with very detailed descriptions on how the storage setup must look like, analogous to the specifications produced by YaST's Expert Partitioner or the AutoYaST profile which both include every single detail about partitions, file systems or LVM structures.

On the other hand, Agama can automatically determine any omitted aspect of the configuration, based on the definition of the operating system to install ("product" in Agama jargon) and the properties of the system, without the user specifying, or even understanding, every single configuration option.

That opens the door for configurations with any level of detail. For example, the user can use the web interface to specify the creation of a root ("/") file system and a swap space, with no further information. Agama would then infer all the details of the file systems (like the type, the mount parameters, usage of Btrfs snapshots...) and would calculate appropriate sizes for the associated partitions. The user can decide at any point to override any of the automatic values (eg. specifying a size range for a partition) or to go back to the automatic mode for that particular setting.

Something similar happens with complex structures like LVM, which do not necessarily need to be described exhaustively.

Overall description of the Storage page

Agama does not offer a direct replacement for the YaST Expert Partitioner. Although creating such a tool is not discarded for the future, the Agama web interface should be enough to cover most of the Expert Partitioner capabilities. In many cases, even in a more convenient way.

The Storage section of the Agama web interface presents both the installer settings and the planned result of applying those settings to the current system.

Overview of the storage configuration page

The configuration defines which devices to use and how, which new logical devices to create (eg. LVM) and where to allocate (or reuse) the file systems of the new operating system. The result is currently represented as a list of planned actions and a table representing the final state of the affected devices. In the long term, a better alternative to show the result could be developed.

Every change to any of the configuration options will result in an immediate re-calculation of the section that presents the result. As already mentioned, the configuration options are identical to the case of unattended installation (see detailed description at the corresponding section), although the user interface presents more clearly the relationship between those settings and the system being used for installation.

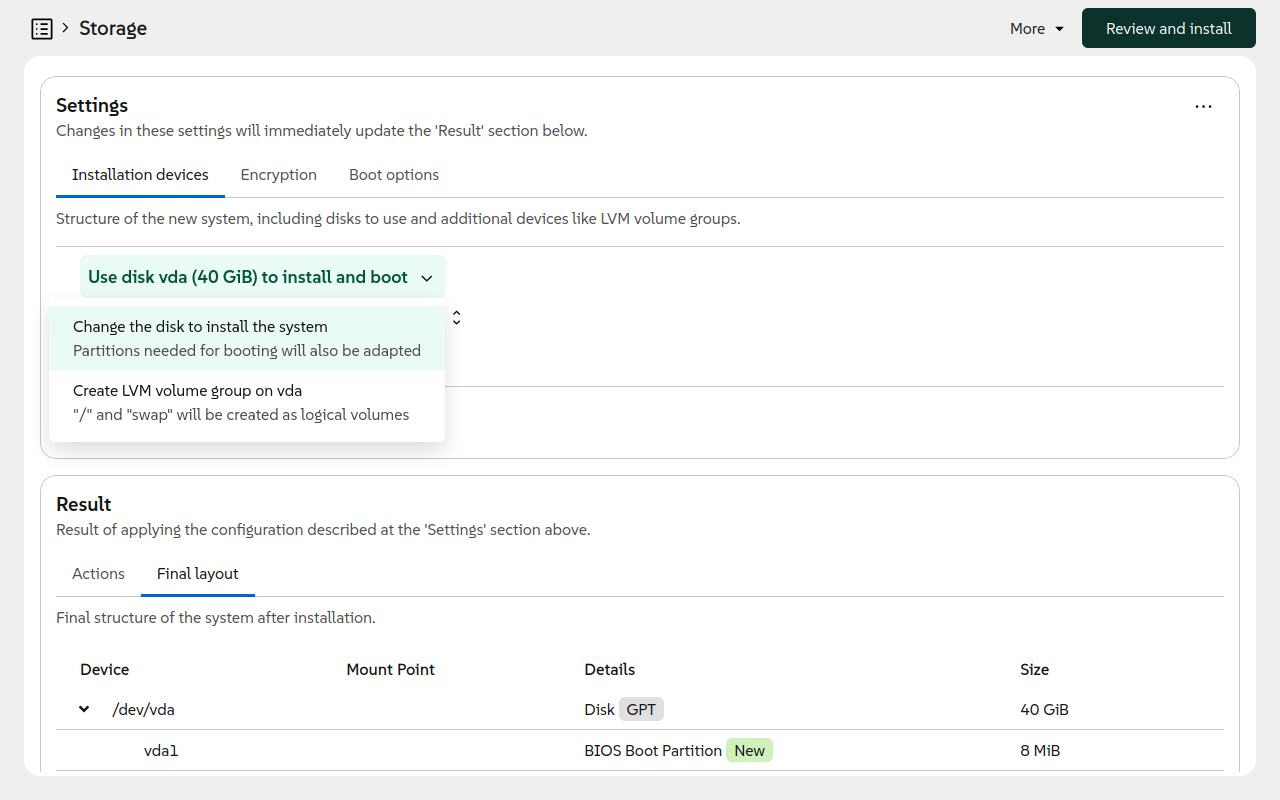

Selecting a device for installation

Under development

The current user interface does not support all the possibilities that can be expressed by an Agama storage configuration. For example, there is not support yet for defining new RAID devices.

If a given configuration is not manageable by the web interface, then the storage section shows a message explaining the situation and offers to reset to the default settings. Such an alert is always shown if the loaded configuration uses the legacy AutoYaST mode.

There are several interactive elements allowing to control several aspects of the installation.

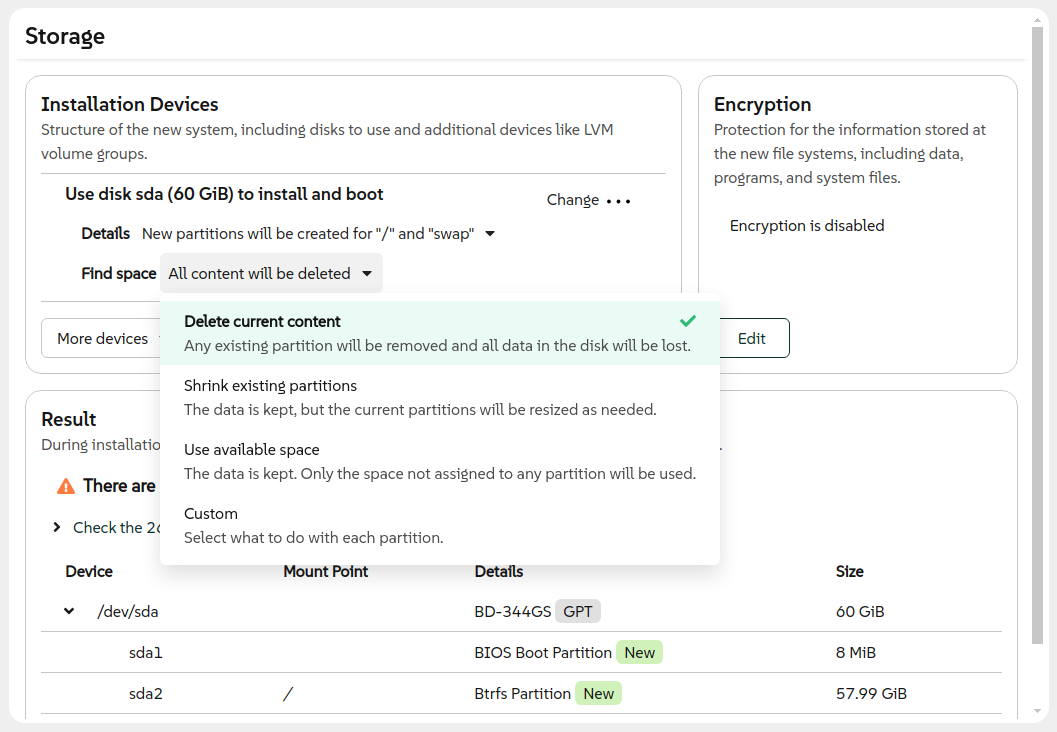

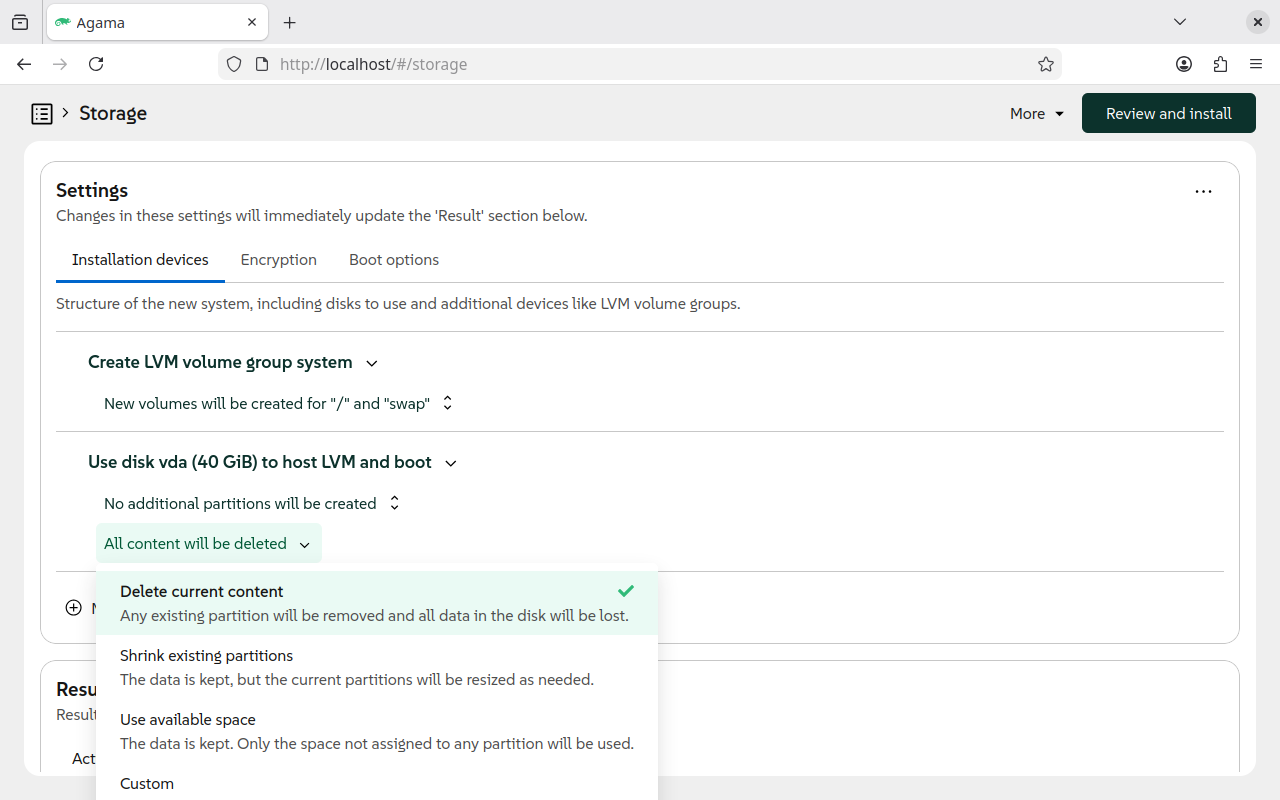

Choosing how to make space

By manipulating the configuration it is possible to extend the installation over several disks and to reuse existing file systems, among many other things.

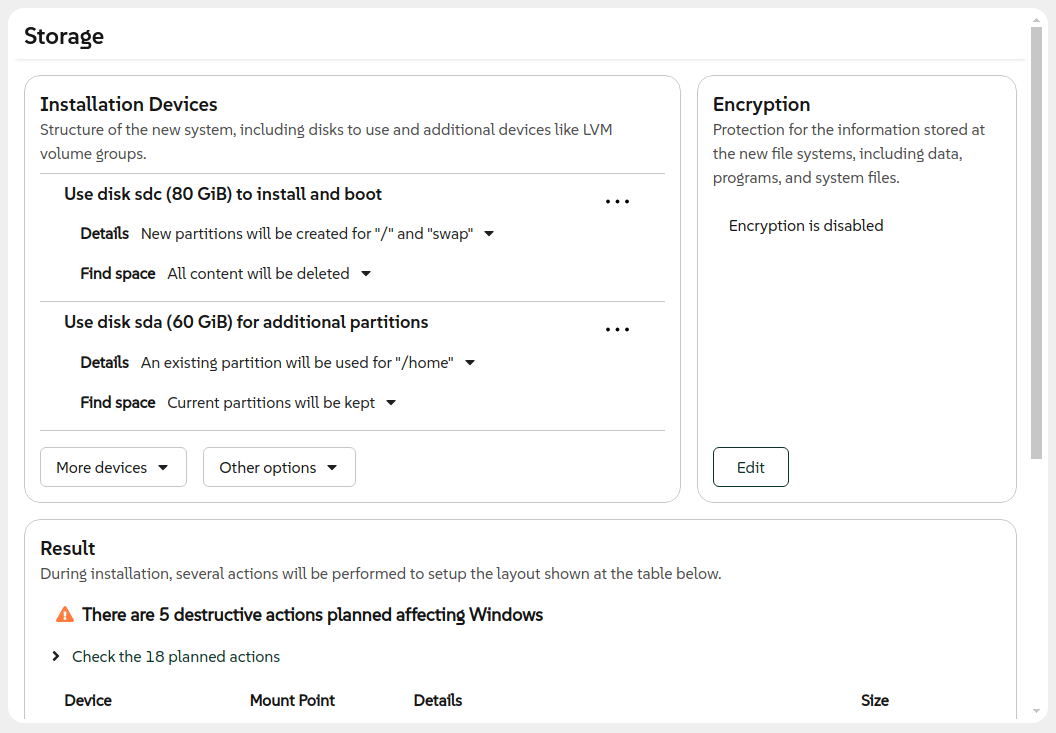

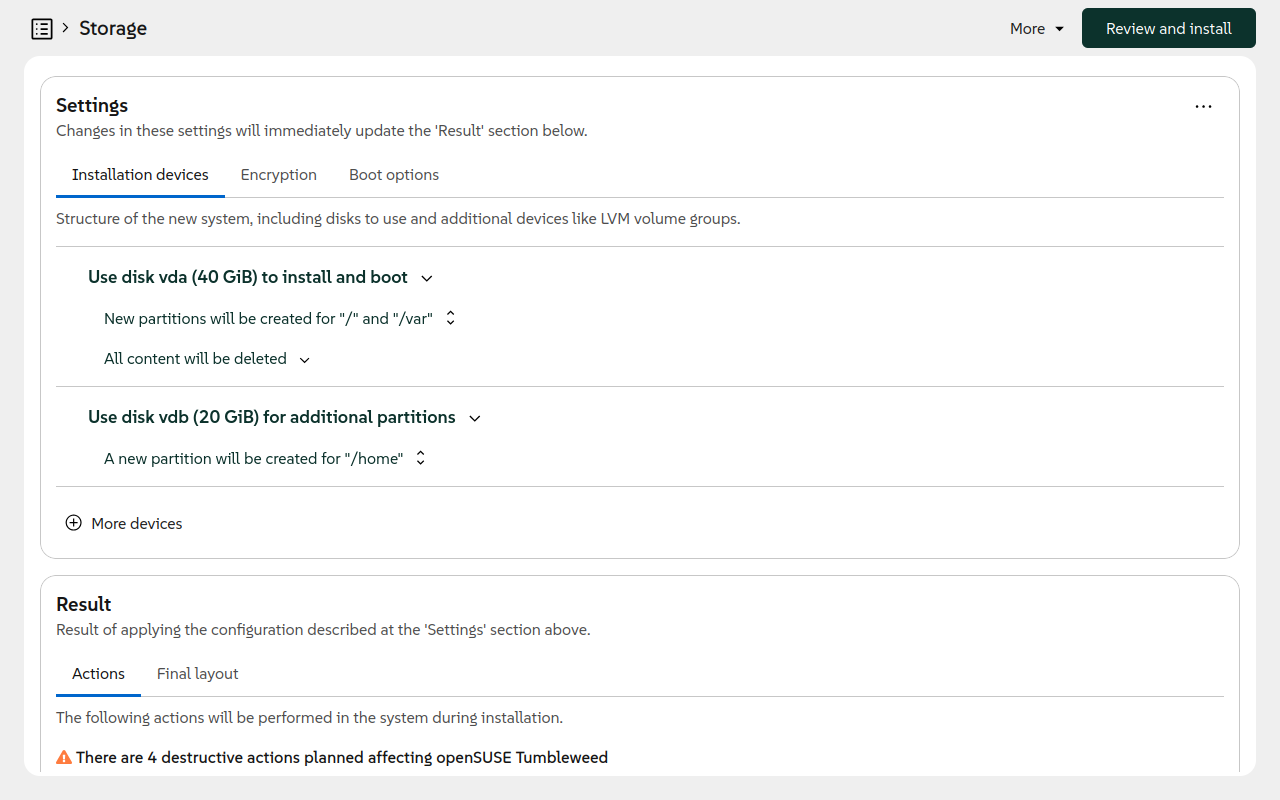

Using another disk for booting and reusing /home

Usage of LVM

Adding new LVM volume groups is done using the same interface.

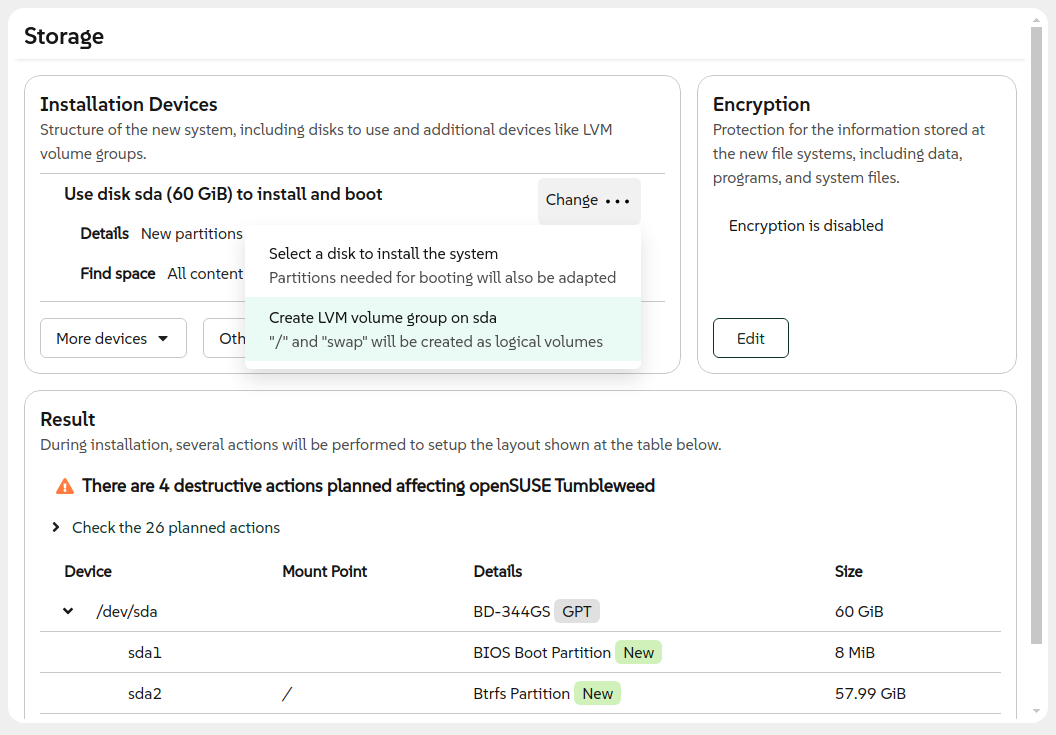

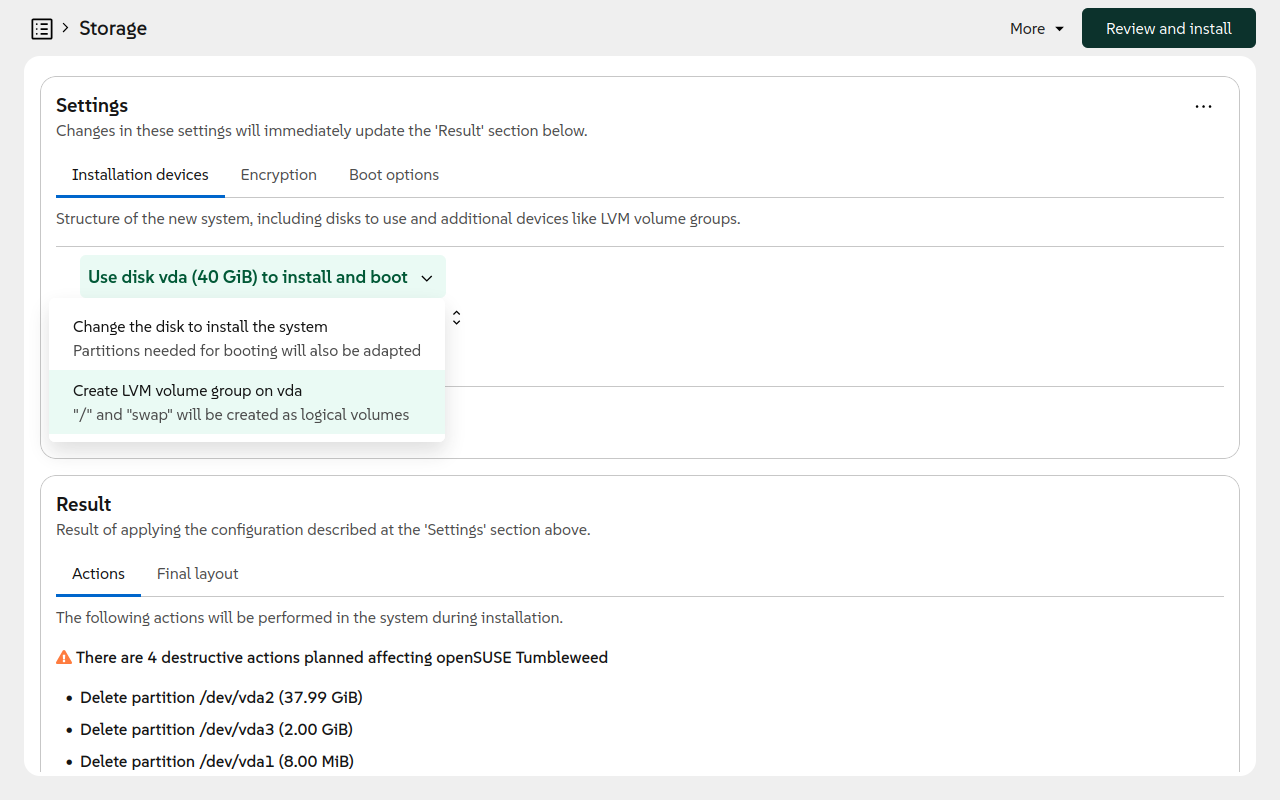

Adding an LVM volume group

Obviously, the file systems created on an LVM volume group will be created as logical volumes analogous to the partitions of the disk case. Once again, it is possible to specify a loose configuration simply indicating the disk (or disks) that will be used by LVM and Agama calculates any partition that would be needed as physical volume, taking into account all the size overheads and roundings introduced by the different technologies like LVM or the used partition table type.

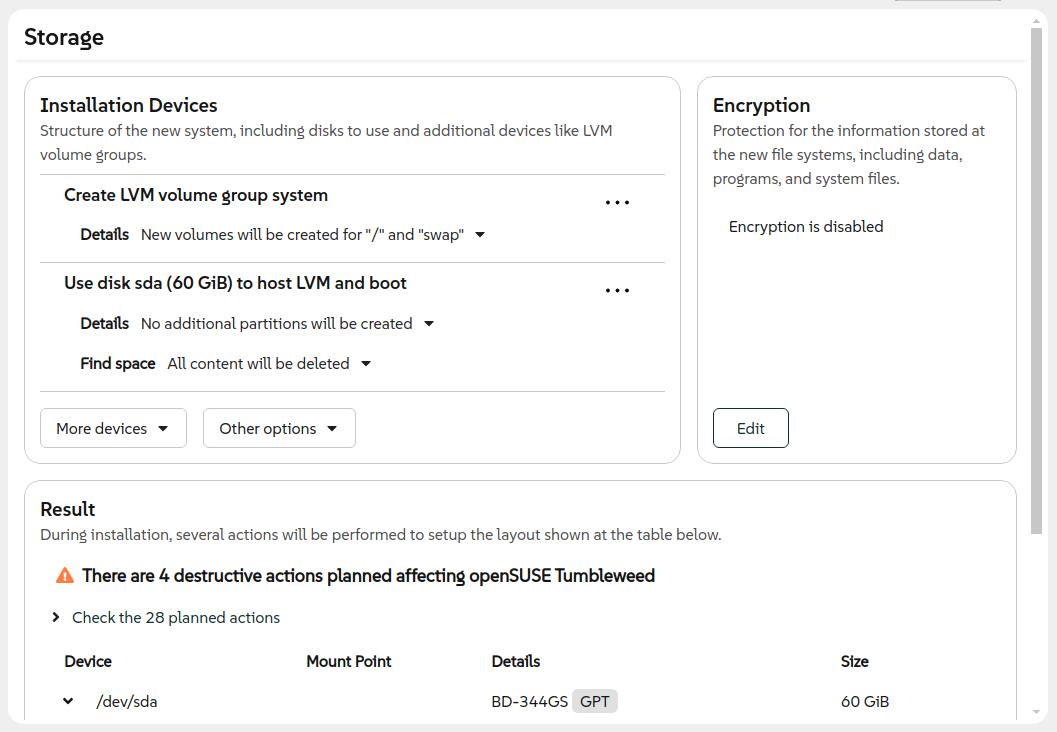

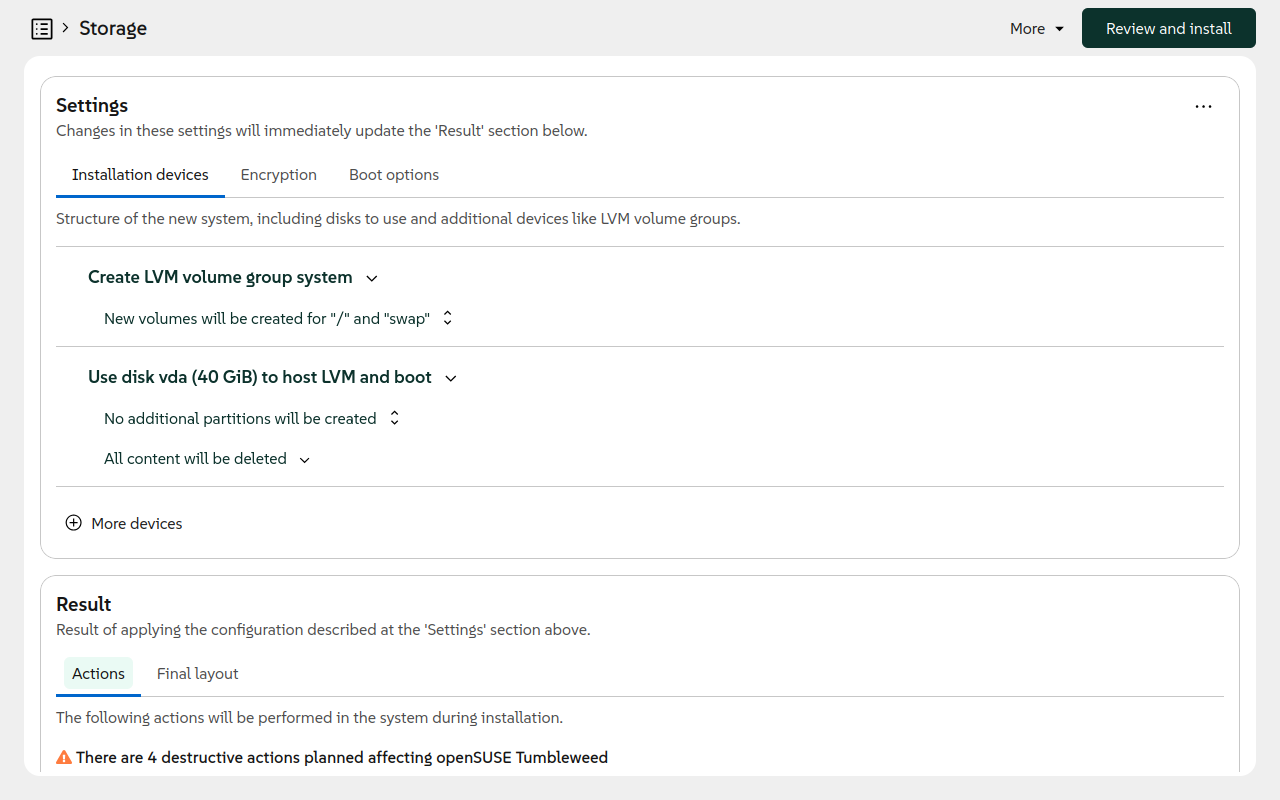

A simple LVM setup

The disks in which the LVM is set are also visible as part of the configuration, so it is possible to create additional partitions out of the LVM, to tweak what to do with existing partitions or to define which disk will be used to create the additional partitions needed for booting.

Using existing partitions

When defining a new partition or modifying an previous definition, it is possible to indicate that an existing partition must be used, instead of creating a new one.

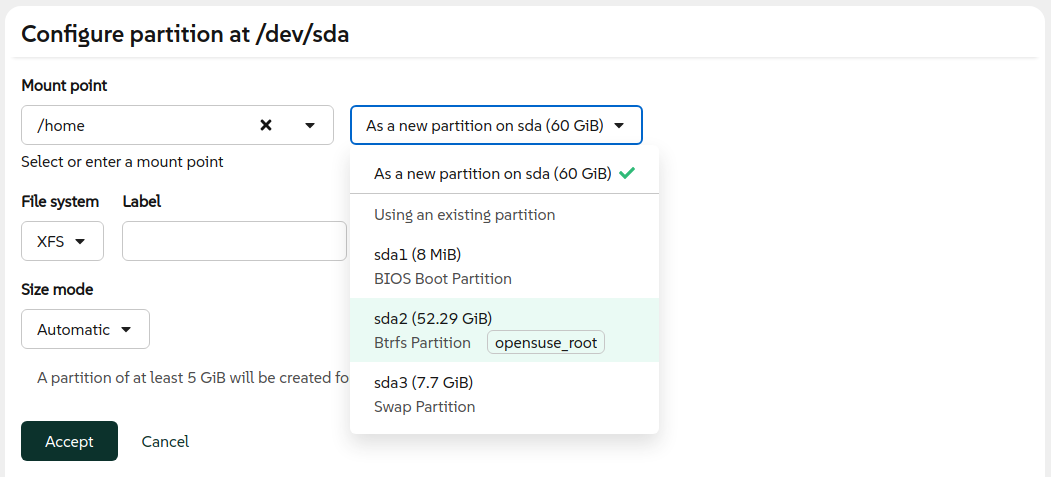

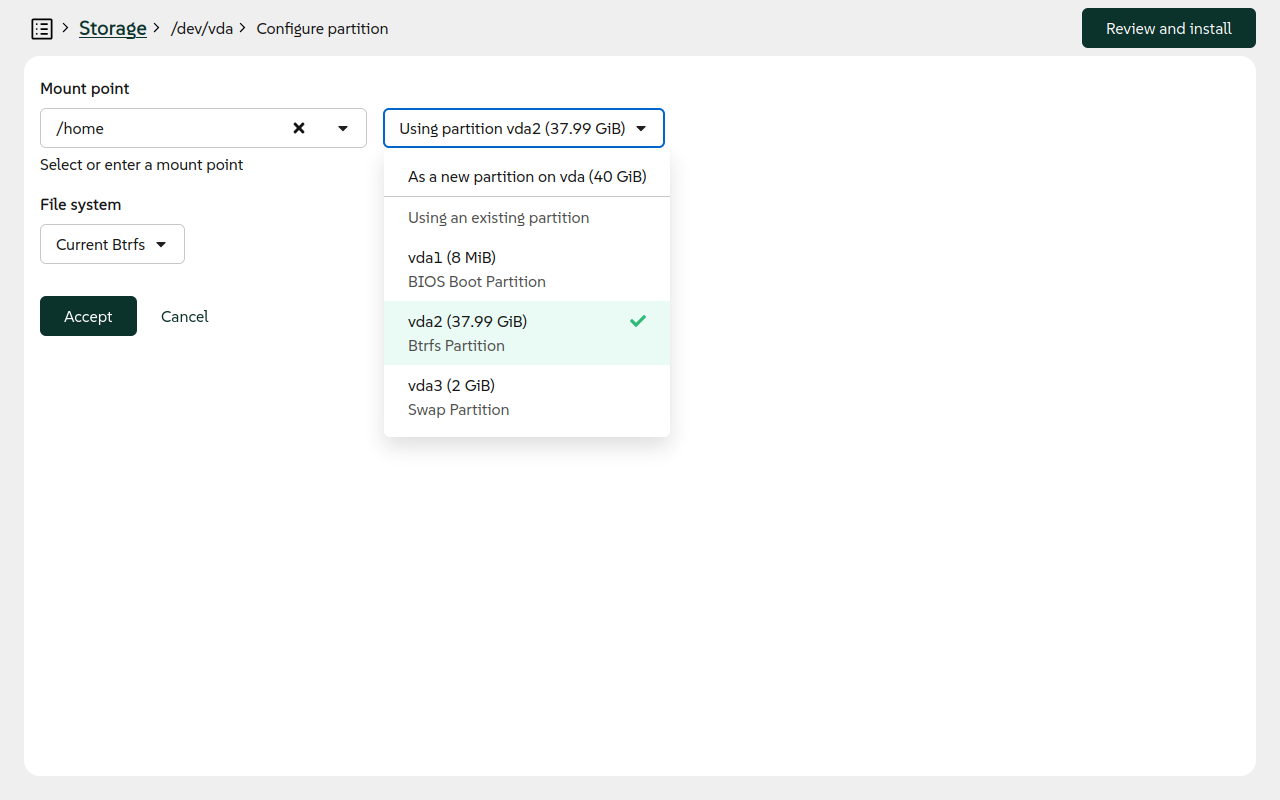

Choosing an existing partition

In some cases, it is possible to keep the existing file system at that partition and simply mount it in the indicated location of the new system. Of course, there is always the option to just reuse the partition itself but format it again with a new file system.

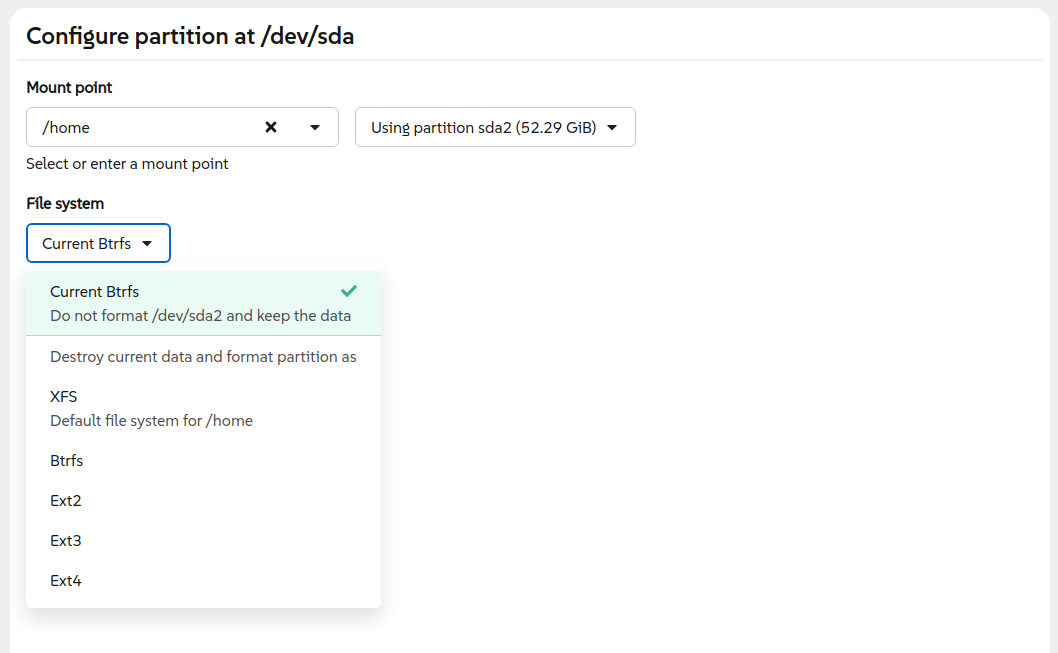

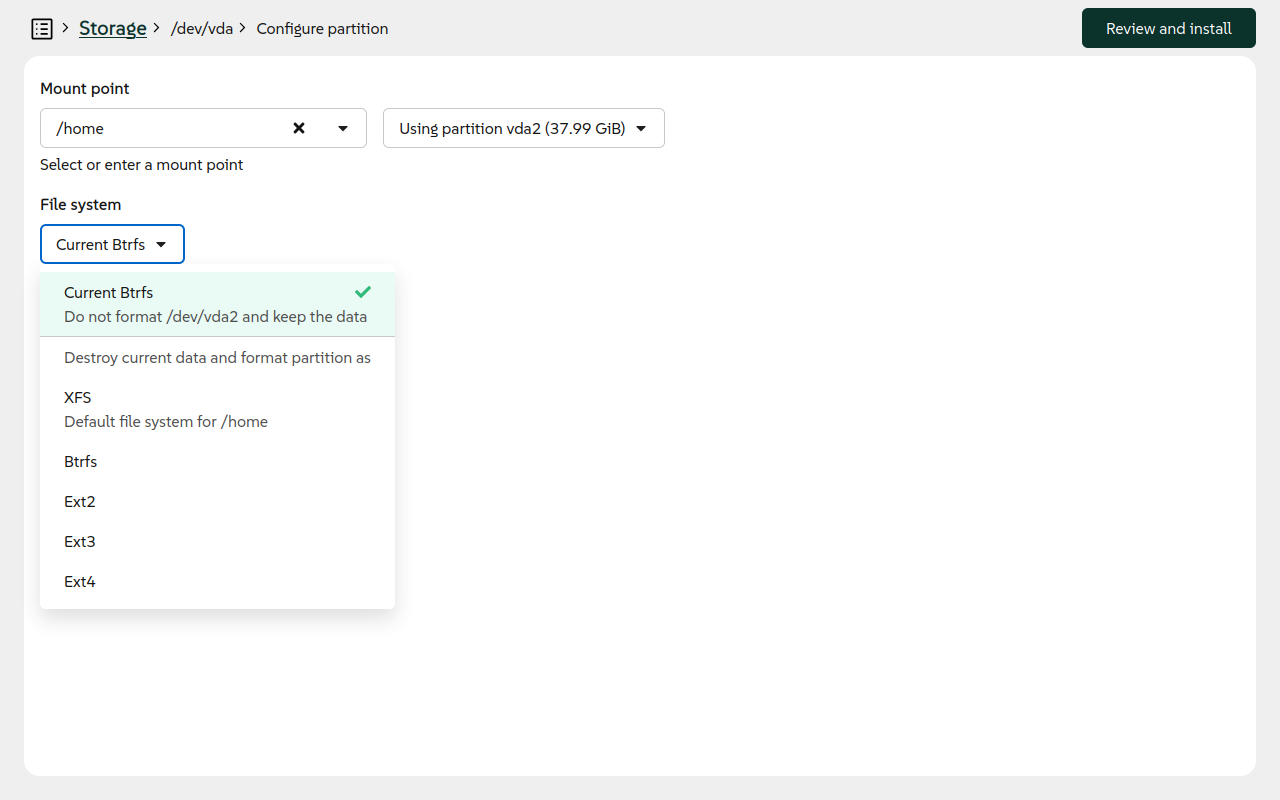

Choosing what to do with an existing partition

Needless to say, re-used partitions will not be deleted (or even resized), no matter what is the general action chosen to find space in the disk.

Full device without partitions

When no partitions are defined on a given disk, it is possible to click "Not configured yet" to either define partitions (new or re-used ones) or to indicate the whole disk should be directly formatted as a whole, with no partition table. Of course, if the disk is already directly formatted, the existing file system can be simply mounted.

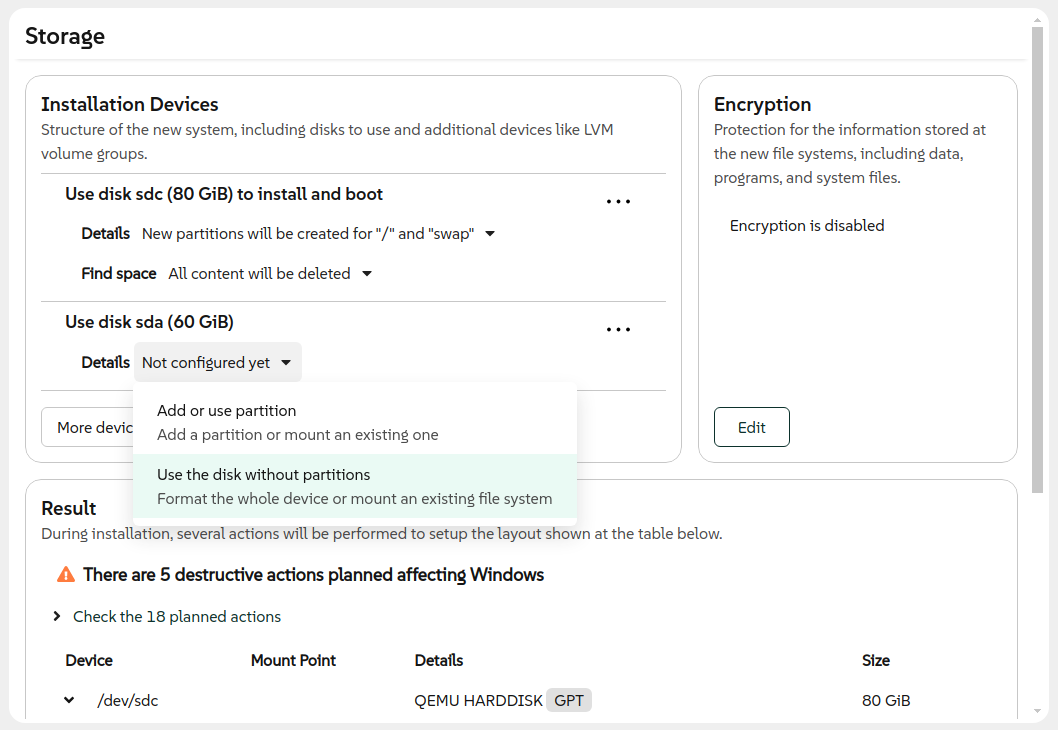

Directly use a disk

Directly formatting or mounting a device is useful in many situations. For example, in a system in which some software RAIDs have been defined before the installation and the user wants to format those RAID devices. In that regard, software RAIDs are treated as regular disks by the Agama user interface.

Configuration of partitions needed for booting

One of the main features of the Agama storage setup is its ability to automatically determine any extra partition that may be needed for booting the new system, like PReP, EFI, Zipl or any other described at the corresponding YaST document. The algorithm can create those partitions or reuse existing ones that are already in the system if the user wants to keep them. The behavior of that feature can be tweaked using the corresponding entry at the advanced options menu.

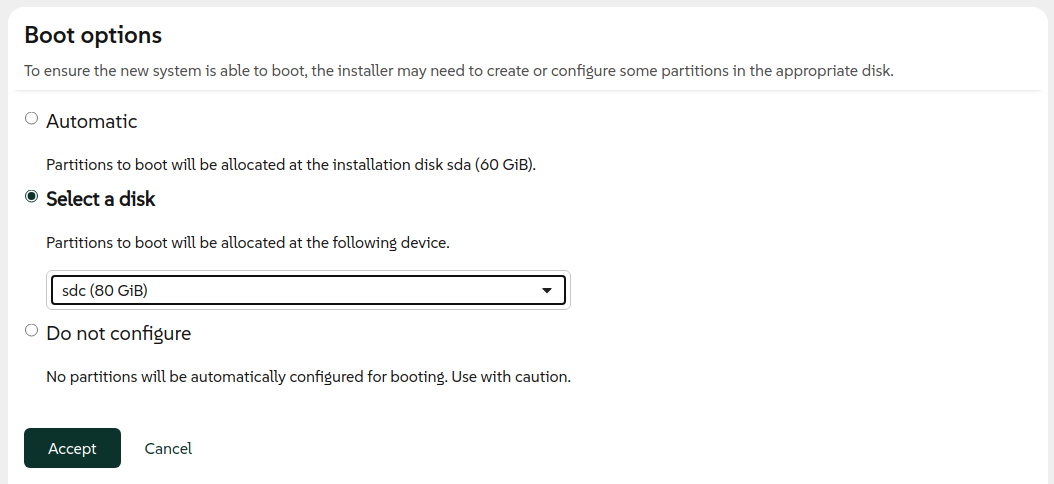

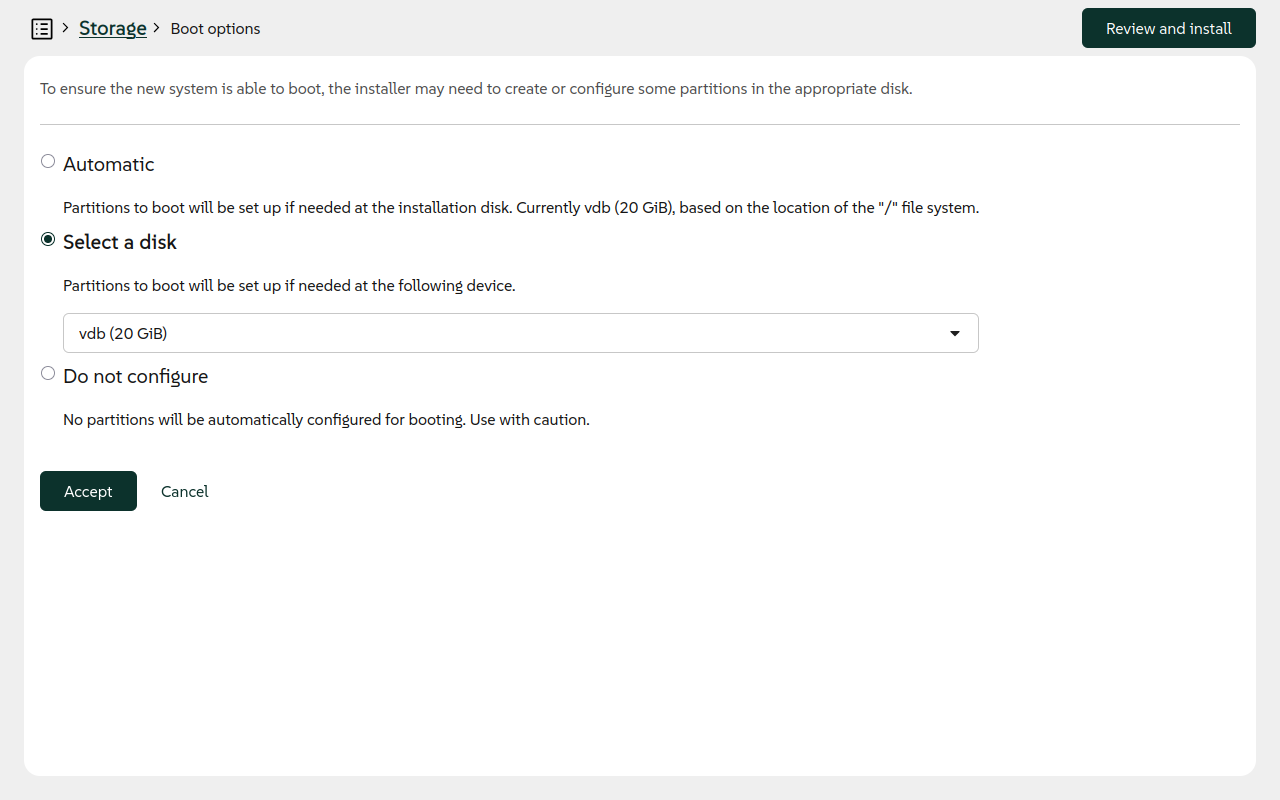

Choosing the disk to create boot partitions

Analyze the system and update the information

Sometimes the storage setup of the system changes after the installer has done its initial analysis. New hardware devices can be plugged in and new logical devices (like RAIDs or LVM volume groups) can be created. Or maybe nothing has changed but the user needs a second chance to enter the encryption password for an existing device that was skipped during the initial system probing.

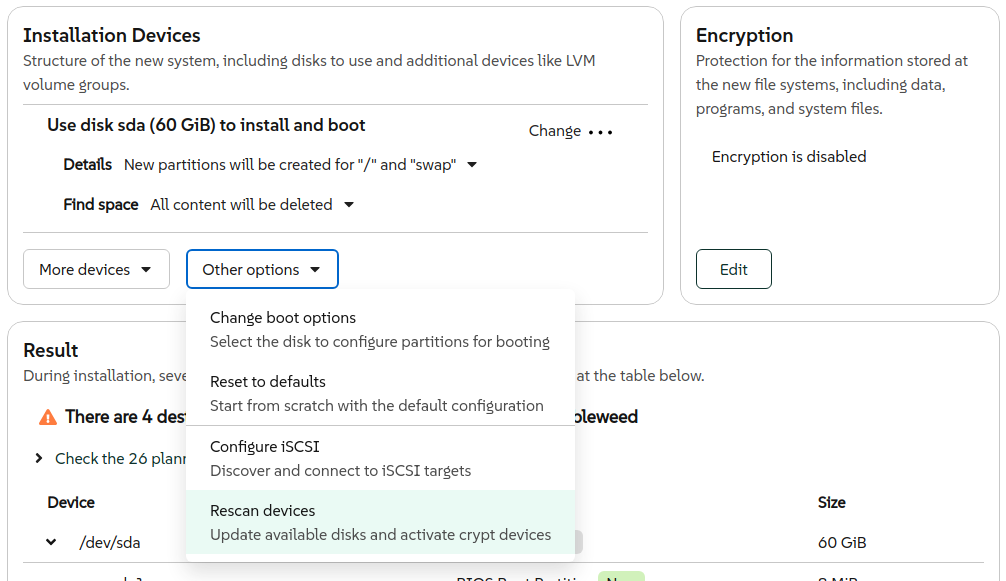

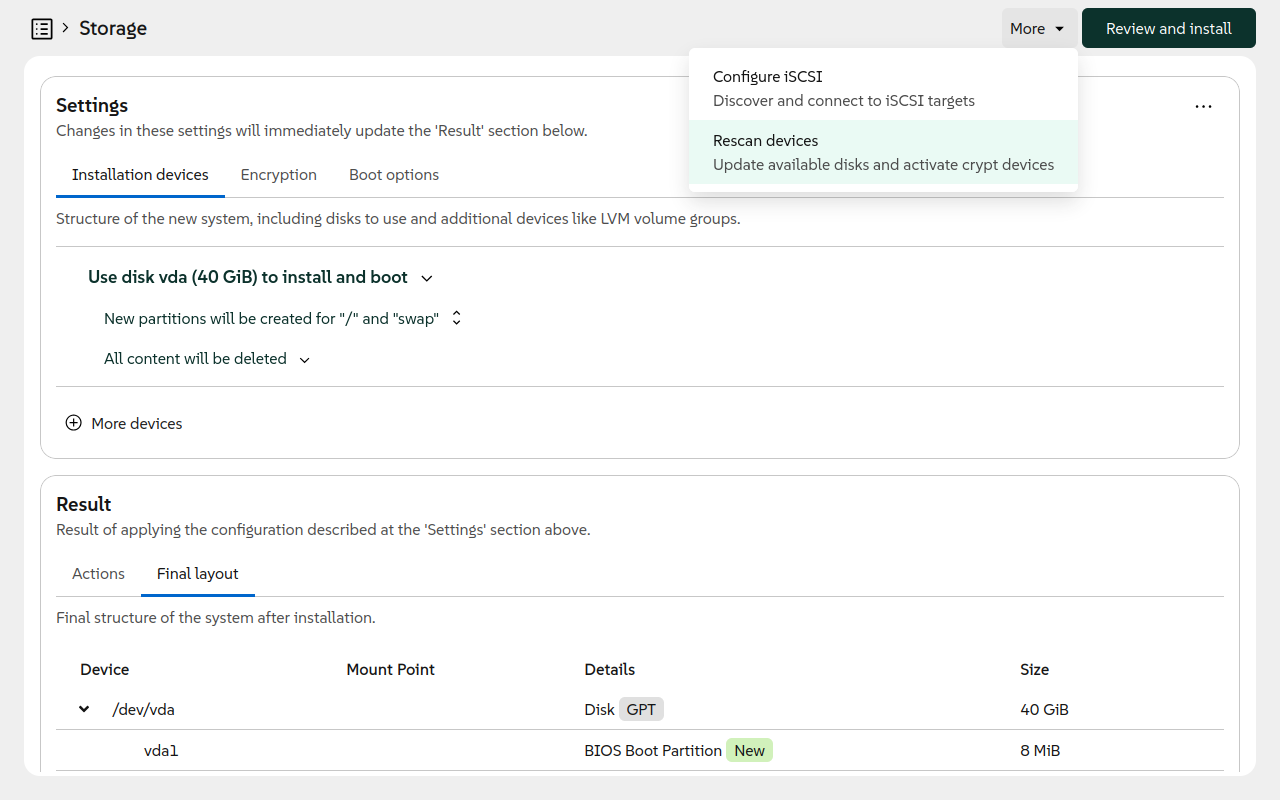

Rescan devices

The option "Rescan devices" allows to trigger a new system analysis. If the current storage configuration still makes sense after reading the devices, such a configuration will be kept adapting the result.

A note about transactional systems

Agama is able to install transactional distributions like openSUSE MicroOS. There will be no option at the Agama configuration to set whether the root file system of the installed system should be transactional (also known as "immutable") or not. Since the implications go beyond the file system settings, the nature of the system (transactional vs read-write) will be determined by the selection of the product (ie. the operating system) to install.

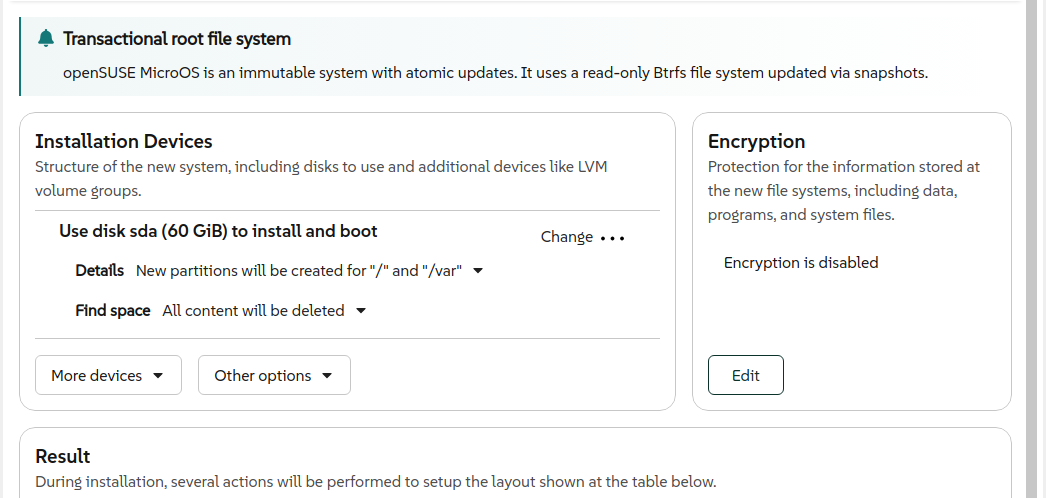

Information about transactional system

The initial proposal

Defining the file systems is essential for installing the system, so Agama always makes an attempt with an initial configuration before the user has had any opportunity to specify the settings (in an interactive installation) or if the user has omitted the storage configuration (in an unattended installation).

The current logic to calculate those default settings is intentionally simplistic - just trying to install into a single disk with the default product strategy to find space (eg. wiping the content of the disk) and using the other default sizes and settings of the product (eg. Btrfs snapshots). If that first attempt fails to calculate a valid storage setup and the system contains several disks, Agama will try again with the same settings on another disk. Up to a total of five attempts on as many different disks.

That is an important difference with YaST, which tries really hard to find a configuration that makes the installation possible even if that implies completely modifying the default settings (eg. going for minimal sizes, disabling Btrfs snapshots and removing separate partitions) in addition to trying different disks (or even combinations of disks).

The goal of the Agama approach is to provide a more consistent experience that makes the user part of the decision making process and aware of the changes introduced at the configuration. Adding some automatic adjustments for some clearly visible settings is not fully discarded for the future, subject to finding the right way to make those automatic decisions obvious to the users.
