Releasing version 17

Summer is vacation season, at least in Europe, and that usually means nothing seems to move too much. But since there is an exception to every rule, here comes a new Agama version to prove that not even heat can stop Free Software!

Agama 17 represents an important milestone for the Agama project. Taking into account how close the release of SUSE Linux Enterprise 16.0 is, we foresee this version of Agama (or a very similar one) becoming the endorsed installer for that release of SUSE's flagship distribution.

So let's see what's new.

Better representation of wired network connections

Starting with the web user interface, the page to display and configure a concrete wired interface was heavily reorganized to improve clarity and to correctly represent the situation in which several devices share the connection.

Improvements in the storage user interface

The page to configure the storage setup was also slightly restructured. The information displayed at the "Installation Devices" section was reorganized with the goal of making its usage more understandable at first sight.

This is just an intermediate step to our envisioned user interface. But that is how goals are reached - one step at a time.

Apart from reorganizing the information, the new user interface offers the possibility to directly use a disk (or a pre-existing RAID device) without creating partitions.

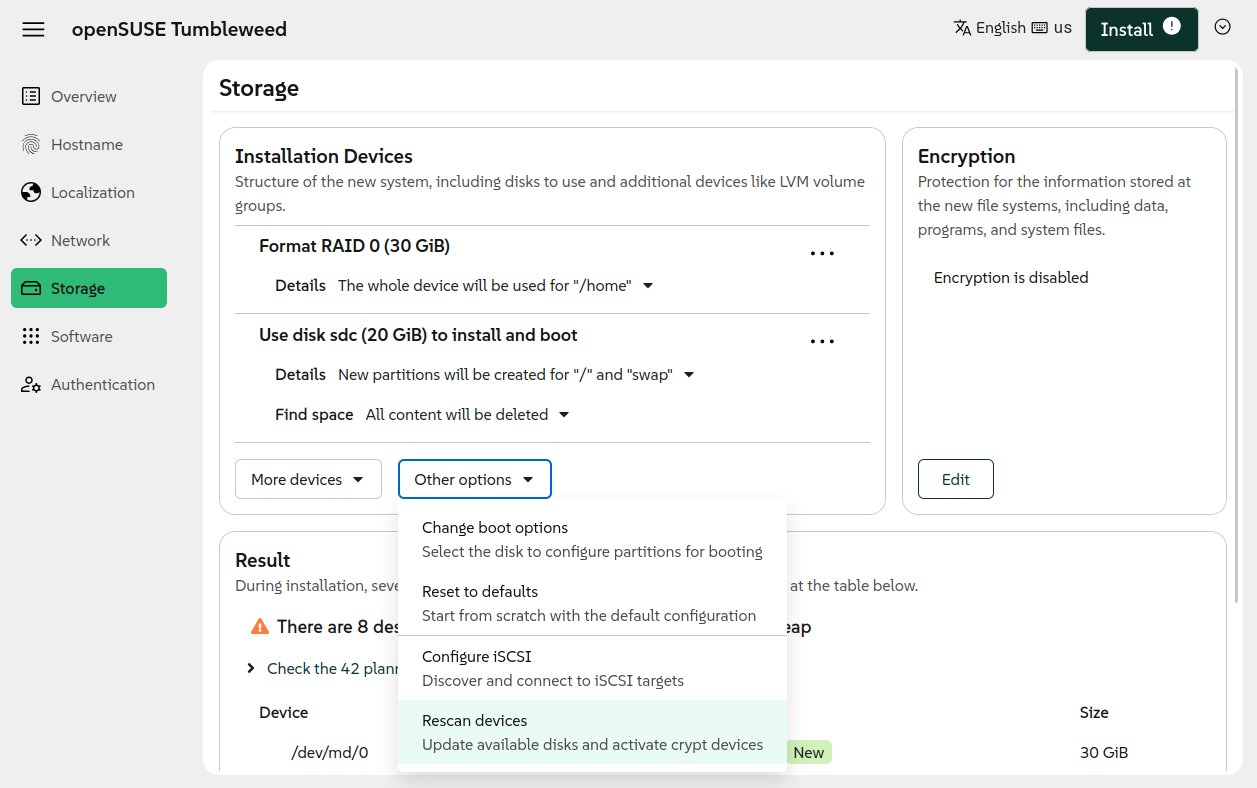

There is also a new option to re-scan the system in case new hardware devices has been plugged in, new logical devices (line RAIDs or LVM volume groups) have been created or the user needs a second chance to enter an encryption password.

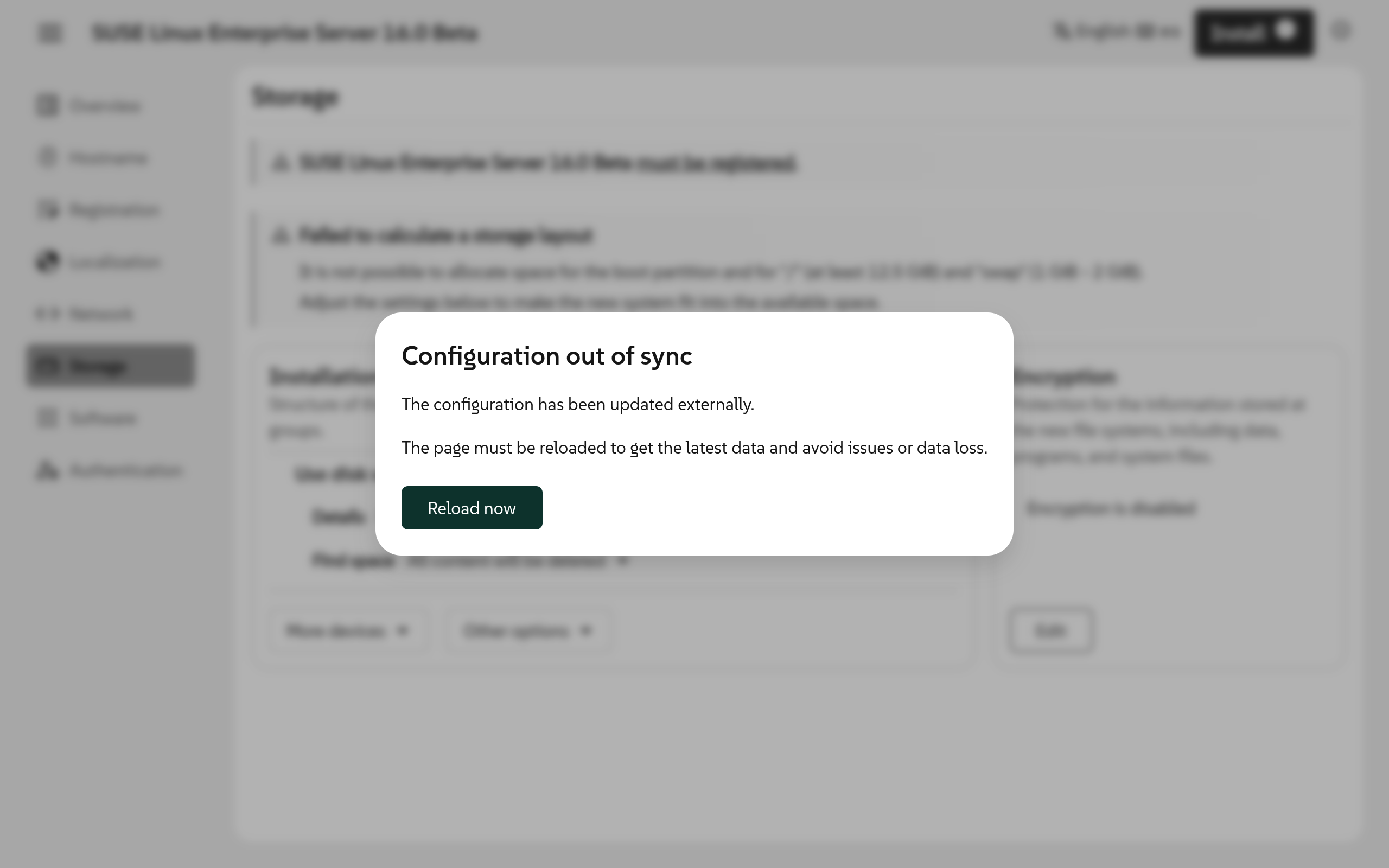

Last but not least, the user interface can now detect when an Agama configuration has been loaded affecting the storage setup.

More options at the registration page

To finish the recap of the main changes at the user interface, we must mention the registration page. Apart from registering the system on the SUSE Customer Center (SCC), now the user interface can be used to register the system on a custom instance of RMT (Repository Mirroring Tool).

Users of such RMTs do not longer need to use a configuration profile or Agama's command-line tools, like in previous versions of the installer.

Skipping SELinux configuration

The default installations of SUSE Linux Enterprise Server 16.0 and openSUSE Leap 16.0 will use SELinux as the default Linux kernel security module (LSM). But it is possible to adjust the software selection to not install SELinux or to install an alternative LSM (like AppArmor).

Previous versions of Agama did not manage that situation correctly. Agama always enforced the configuration of the default LSM for the product (SELinux in the mentioned cases).

Now the configuration of the LSM is based on the software selection. At the end of the installation process, Agama configures the installed security module. If several ones are installed, Agama configures one of them, with the default one having precedence over the other candidates.

New options in the JSON configuration

As most of our readers know, the best way to access the full potential of Agama is to use a JSON (or Jsonnet) configuration. That goes far beyond the options offered by the web interface and is the default mechanism to configure unattended installations.

Agama 17 adds the possibility to configure VLAN interfaces. See the following example.

{
  "id":          "vlan10",
  "method4":     "manual",
  "method6":     "disabled",
  "addresses":   ["192.168.1.28/24"],
  "gateway4":    "192.168.1.1",
  "nameservers": ["192.168.1.1"],
  "vlan": {
    "id":     10,
    "parent": "eth0"
  }
}

Now it is also possible to activate zFCP devices by specifying the corresponding section at the JSON configuration, like in this example.

{
  "zfcp": {
    "devices": [
      {
        "channel": "0.0.fa00",
        "wwpn":    "0x500507630300c562",
        "lun":     "0x4010403300000000"
      }
    ]
  }
}

This version also adds more flexibility to define the list of software patterns to be installed. In previous versions, it was only possible to specify a whole list that would replace the default list of optional patterns defined by the product. Now it is possible to ask Agama to modify that list, just adding or removing certain patterns.

{
  "software": {
    "patterns": {
      "remove": ["selinux"],
      "add":    ["apparmor", "gnome"]
    }
  }
}

But sometimes it is Agama that wants to ask something to the user. For example, when it finds an encrypted device and needs the password to inspect its content. If that happens, Agama's user interface can show a dialog for the user to provide the answer. But there are more options to communicate those answers to Agama, like using the command agama questions to load a file containing answers. Agama 17 introduces a third way - the new questions section at the JSON configuration. Again, let's illustrate it with an example.

{
  "questions": {
    "policy": "auto",
    "answers": [
      {
        "class": "storage.luks_activation",
        "password": "nots3cr3t"
      }
    ]
  }
}

Improvements for unattended installation

Users of the unattended installation will of course benefit from the mentioned new options added to the JSON configuration. But the improvements for automated installations go beyond that.

On the one hand, Agama does not longer proceed silently if it fails to fetch or process a configuration provided via the inst.auto boot argument. Instead, this new version displays an error message asking the user whether or not to retry. If the user decides to not retry, Agama does not start the auto-installation process. This is just a first step in the right direction, in the future Agama will offer better diagnostics and the possibility to specify a new URL.

On the other hand, the new boot arguments inst.auto_insecure and inst.script_insecure allow to disable the SSL checks when fetching the configuration or the installation script for an unattended installation. That simplifies setting up the corresponding infrastructure in controlled environments.

More possibilities to patch the installer

Traditionally, the (open)SUSE installation process could be modified using RPM packages or a so-called DUD (driver update disk). Despite the name, the possibilities go way further than updating the drivers. A DUD might contain files to be copied to the installation media, scripts to be executed during the process, new or updated packages to be installed, etc. You can learn more at this classic document.

Previous versions of Agama already had some limited compatibility that allowed to patch the installation process. But that compatibility improves a lot with Agama 17.

At Agama, the URL of an update is specified through the boot option inst.dud. As mentioned, an update can be a simple rpm package or a more complex DUD, created with the mkdud tool. You can specify as many updates as you wish. Do not forget the rd.neednet option if you need the network to retrieve the DUD.

inst.dud=http://192.168.122.1/agama.dud rd.neednet

Additionally, the inst.dud_insecure boot argument allows to ignore SSL certificate problems (eg. a self-signed certificate) when fetching updates.

The family grows

As you know, Agama allows to install different distributions that are called "products" in Agama's jargon. Recently Lubos Kocman contributed a new product definition for openSUSE Leap Micro 6.2. That means you will now find a new option on the initial page that allows to select the distribution to install.

Welcome aboard, Leap Micro!

Web page reorganization

And last but not least, a news that is not about Agama itself but about the site that hosts this blog. As a first step to extend Agama's documentation, we reorganized agama-project.github.io quite a lot. Check the new additions like the "Get started" and "Guides & HowTos" sections. The second one is at an early stage, but we are already working on growing it with more and more content. Of course, contributions are more than welcome.

As a drawback, many of the links you may have from previous sources may now be broken. We rearranged the content a lot and it was not feasible to define a redirection for every moved piece of information. Sorry about that.

We keep moving

As mentioned, the upcoming SUSE Linux Enterprise 16.0 will be distributed with the current version of Agama or with a very similar one. But that does not imply Agama development will slow down, quite the opposite. There is still a long road ahead and we will keep implementing fixes and new features that you could always test with our constantly updated testing ISO.

Of course, we will keep you updated on this blog. But if you got questions or want to get involved further, do not hesitate to contact us at the Agama project at GitHub and our #yast channel at Libera.chat.

Have a lot of fun!
